YSM20R PV Premium Modular Placement Machine
Second Hand equipment

- Vintage 2016
- S/N Y36419
- Cadence: 38K components/ hour max, IPC 27K componets / hour
- Max PCB size: L 810 mm x l 490 mm
- Machine dimensions: L 1374 mm x l 1857 mm x H 1445 mm
- Weight: 2050 Kg
- Conveyor direction: left to right
- Automatic width adjustment
- Front & rear control screen
- 2 fiducual cameras
- 3 colors beacon
- Feeder detection sensor
- 1 beam with 1 high cadence HM head (10 nozzles)
- 70 x 8 mm front fixed feeder position
- 70 x 8 mm rear fixed feeder positions
- Component size from 0.3 mm x 0.15 mm up to 45 mm x 100 mm , H max: 15 mm
- 1 extended JDEC support plate

Used equipment

- Vintage : 2011
- Dimensions (L x l x H) : 5933 x 1600 x 1420 mm
- Weight : 2500 KG
- Full nitrogen inertion
- Pin chain conveyor + central support
- Maximum board width. : 500 mm
- Conveyor direction: left to right
- Process heating length : 3660 mm
. 12 top/bottom zones
- Maximum process temperature : 350°C
- Cooling length : 1222 mm
. 4 top/bottom zones
- Flux trap system
. External water close loop system is required for cooling and flux trap
- Board counter
- Hight & low tremerature controlled by soft with alarm
- Limited heating power at start up
- Motorized opening of the vault
- Operating software: Windows XP
- Interface screen for operator
- 3 colors light columns with alrm buzzer
- Power inlet : 400 Volts (3P+N+T) / Puissance : 40 KVA
- Communication SMEMA 2
- Nitrogen : 6 bars
- Fume exhaust : 1 outlet Ø 165 mm - 250 m3 / heure
- Color : RAL 9002 et 7036
- CE stamp

YSM20R PV Premium Modular Placement Machine
Second Hand equipment

- Vintage 2020
- S/N Y50409
- Cadence: 42K components/ hour max, IPC 28K componets / hour
- Max PCB size: L 810 mm x l 490 mm
- Machine dimensions: L 1374 mm x l 1857 mm x H 1445 mm
- Weight: 2050 Kg
- Conveyor direction: left to right
- Automatic width adjustment
- Front & rear control screen
- 2 fiducual cameras + lateral camera
- 3 colors beacon
- Feeder detection sensor
- 1 beam with 1 high cadence HM head (10 nozzles)
- 70 x 8 mm front fixed feeder position
- 70 x 8 mm rear fixed feeder positions
- Component size from 0.2 mm x 0.1 mm up to 55 mm x 100 mm , H max: 15 mm
- 1 extended JDEC support plate

Équipement d’occasion reconditionné

- Année : 2013
- Dimensions (L x l x H) : 3400 x 1370 x 1600 mm
- Convoyeur à chaînes
• Écartement motorisé ajustable par soft
• Longueur picots porte cartes : 5 mm
• Graissage automatique
• Largeur de passage : 51 - 457 mm
- Convoyeur à chaine à picots 4.75 mm
- Rail d'antiflambage central
- Vitesse convoyeur max : 188 cm/min
- Sens convoyage : Gauche vers Droite
- Longueur de chauffe : 1.830 mm
• 7 zones supérieures
• 7 zones inférieures
- Température maximum : 350° C
- 1 zone de refroidissement sous air pulsée
- Contrôle de température en boucle fermée
- Comptage de cartes
- Gestion des alarmes hautes et basses
- Limitation de la puissance au démarrage
- Ouverture voûte assistée par vérins électrique
- PC et Software sous Windows XP
- Écran pour interface opérateur et supervision
- Colonne lumineuse 4 couleurs avec buzzer
- 2 arrêts d’urgence
- Couleur : RAL 9002
- Aspiration : 1 sorties Ø 110 mm
- Alimentation électrique : 400 Volts (3P + N + T)

Inline X-Ray & Optical Inspection X7056-II

- Vintage : 2023
- Operating hours : 1500
- X-Ray:
* Seales X-ray tube
* High Voltage: 60 - 130 KV
* X-Ray current: 50 - 300 micro ampères
* Detector: Flat Panel Detector (FPD), 14-bits gryscale value depth
* Resolution: 6 - 30 micro metre / pixel (depending on configuration)
- 3D AOI:
* XM camera technology:
* FOV: 23 mm x 23 mm
* Resolution: 4.5 micro metre
* Camera type: up top 9 mega pixels
* 3D AOI
- PCB dimensions : width 350 mm x length 450 mm
- Automatic width adjustment during setup
- Pneumatic PCB clamping
- Conveyor elevation: 850 mm à 980 mm
- Clearance above PCB : 25 mm
- Clearance below PCB: 50 mm
- AOI inspection speed: up to 65 cm² / s
- X-Ray inspection speed: variable
- Windows operating system
- Soft : Viscom vVision/EasyPro
- 3 phases / 400 V / 50 Hz, 8 A
- Machine dimensions (L x W x H) : 1493 x 1631 x 2251 mm
- Weight : 2245 Kg

AOI 3D S3088 ultra chrome

- Vintage: 2019
- Working hours: 17 000
- 3D sensor technology:
* Z-resolution: 0.5 micro metre
* Z-range: up to 30 mm
- Angled view camera: 8 mega pixels
- Orthogonal camera:
* Resolution:10 micro meter
* FOV: 50 mm x 50 mm
- Inspection speed: up to 65 cm²/s
- Software: Viscom vVision/EasyPro
- Operating system: Windows
- Conveyor:
* Single track transport
* PCB dimensions: 508 mm x 508 mm
* Transport height: 850 mm to 950 mm
* Width adjustment: automatic
* PCB clamping: pneumatic
* Upper transport clearance: 50 mm
* Lower tarnsport clearance: 45 mm
- Smema interface
- Power requirements: 400 V 3-Ph, 8 amps
- Pneumatic: 6 bars
- Dimensions: w 994 mm x d 1349 mm x H 1565 mm
- Weight: 720 Kg

Année 2019
I Spector Marantz dans un état comme neuf.
Complet avec PC, et dongle.
Version logiciel 6.7.1

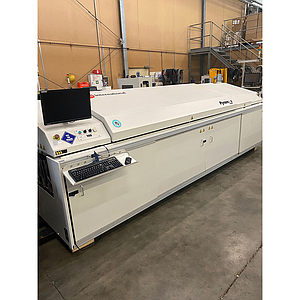

BTU - Reflow oven type PYRAMAX 100N ROHS
Refurbished used equipment

- Vintage : 2014 - S/N PMG-14C
- Dimension : (L x W X H) : 4660 x 1550 x 1530 mm

- Pin chain conveyor
• Conveyor width : 51 - 457 mm
• Motorized conveyor width ajustment
• Board supporting pins lenght : 5 mm
• Automatic greasing system

- Central support chain
• Positioning motorized central support
• Automatic greassing system

- Conveyor speed : 25 to 152 cm/min
- Conveyor direction : Left to Right

- Heating length : 2540 mm
• 8 upper (top) zones / 8 lower (bottom) zones
• Max. heating temperature : 350°C

- Cooling zone length : 610 mm
• Top and bottom cooling by forced air

- Flux management with trap system
• External water supply for flow trap and cooling

- Operating under azote or air
• Gas barrier inlet - Lenght : 450 mm
• Gas barrier outlet - Lenght : 450 mm

- Closed Loop convection control
- Board counter
- Hight and low alarm management
- Limitation of absorbed power at start-up
- Opening and closing motorized vault

- PC & software under Windows 7
- Operator screen for supervision with friendly interface
- Alarme buzzer
- 4 emergency stop
- Exhaust : 2 output Ø 125 mm - 2 x 470 m3/h with registers
- Power inlet : 400 Volts (3P + N + T)
- Inlet air or azote : 6 bars
- CE certificates
- Color : RAL 9002

- S/N 15111295997 / Vintage 2015 - Refurbished in 2025
- Dimensions : L 4400 mm x w 1625 mm x H 1410 mm / Empty weight 1500 Kg
- Full tunnel inerted wave
- Carrier dimensions: Length 500 mm x Width 400 mm

- Conveyor left to right :
=> Free rolls for carriers on the fluxing & pre heating zones
=> Fingers L & V on the process area (above the pot)

* Fixed conveyor width: 400 mm
* Conveyor speed: 0.5 - 2.5 m/min
* Conveyor elevation: 940 mm
* Max. component height : 90 mm

- Fluxer area:
* ATS spray fluxer with HVLP spray head
* Offset and spray width individually programmable
* Atomatic filling by electrical pump

Preheat area:
* Full tunnel preheating / preheating length : 1800 mm
* Number of preheat zones : 6 - Width 300 mm
* 1 x convection (bottom) - 1 x 10.0 KW
* 4 x IR (bottom )- 3 x 3.0 KW
* 1 x quartz (bottom) -1 x 3.75 KW

- Soldering Module:
* 1 ROHS pot
* Carbon steel with ceramic treatment
* Nozzle width: 450 mm
* Solder volume : 620 Kg (lead free)
* Power rating: 9.0 KW
* 1 SMT nozzle EnergyWave 45
* 1 laminar nozzle Delta
* Motorized extraction of the pot from the rear of the machine
* Solder level control
* Solder bar supply (1 to 2 Kg bars)

- Carriers can be offered as an option

- PLC controlled wave
- SMEMA interface
- Automatic controll of fume exhausts
- PLC controlled PCS-747 (touchscreen)
- HMI interface screen on PCS-747 moving support
- Emergency stop push button
- 3 colors beacon with buzzer

- Connections:
* Power inlet: 400 Volts / 3PH - 37KW
- Steady state consumption: 9KW
* Nitrogen connection: 6 bars / 12 à 15 m3/heure
- Compressed air connection : 6 bars
- Exhaust connection : Diam. 200 mm / 1000 m3/hour

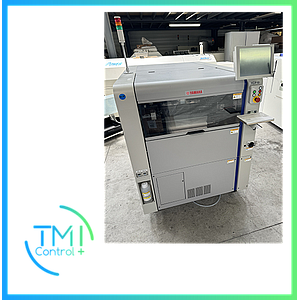

YCP10 High Performance Compact Printer
Used equipment refurbished in 2025

- Vintage 2018,
- Max PCB size: L 510 mm x W 460 mm
- Stencil size: L 750 mm x W 750 mm (extensions needed for 23 square inches stencil)
- YSP-3s head (Swing Single Squeegee): adjustable attack angle (from 45° to 65°) and speed, controlled by soft
- Stencil vacuum system to avod stencil drop ("wave' effect)
- PCB direction: left to right
- LCD touch monitor + keyboard
- Aluminium support plate with 9 mm x 9 mm pitch matrix (not magnetic support plate)
- Metal squeegee holder: L 350 mm with metal squeegee
- Wet cleaning system with vacuum: L 400 mm
- 2D print inspection with dedicated camera (different from fiducial) with a wide FOV
- Programming on the machine (off line P-Tool system can be added with extra cost)
