YCP10 High Performance Compact Printer
Used equipment refurbished in 2024

- Vintage 2018,
- Max PCB size: L 510 mm x W 460 mm
- Stencil size: L 750 mm x W 750 mm (extensions needed for 23 square inches stencil)
- YSP-3s head (Swing Single Squeegee): adjustable attack angle (from 45° to 65°) and speed, controlled by soft
- Stencil vacuum system to avod stencil drop ("wave' effect)
- PCB direction: left to right
- LCD touch monitor + keyboard
- Aluminium support plate with 9 mm x 9 mm pitch matrix (not magnetic support plate)
- Metal squeegee holder: L 350 mm with metal squeegee
- Wet cleaning system with vacuum: L 400 mm
- 2D print inspection with dedicated camera (different from fiducial) with a wide FOV
- Programming on the machine (off line P-Tool system can be added with extra cost)

Used equipement refurbished in 2023

- Online automatic screen printing equipment
- Année : 2011 - S/N : 231078
- Weight : 500 Kg
- Max. PCB size (L x l) : 450 x 400 mm
- Min. PCB size (L x l) : 50 x 50 mm
- PCB thickness : 0,4 - 5 mm
- Max. PCB weight : 1 Kg
- Automatic conveyor width adjustment
- Round belt conveyor 3 mm
- Wet vacuum cleaning
- Automatic camera alignment
- Repeatability accuracy : 20 μm @ 6 Sigma 2 cpk
- Squeegee pressure : 1 - 20 Kg
- Squeegees : metal or polyurethane
- Transport direction :
. Left-Right / Right-Left / Left-Left / Right-Right
- Stencil frame size : 584 x 584 mm (23'' x 23'')
- Automatic stensil load/Unload
- SMEMA 2 communication
- 1 communication cable delivered
- PC Windows 7
- User interface : Flat screen LCD monitor, keyboard and integral tracker ball
- Power supply : 230 V
- Air supply : 6 bar
- CE certification

SPEED PRINT - Sérigraphie AVI200

Used equipment

- Automatic inline printer
- Vintage : 2007 / S/N: 105
- Dimensions : 1008 x 1275 x 2081 mm (with beacon)
- Weight : 500 Kg
- Maximum board size : 450 x 400 mm
- Minimum board size : 25 x 50 mm
- Board thickness : 0.4 à 5 mm
- Underscreen wet cleaning system with vacuum pump
- Analogic camera for automatic fiducial alignment
- Magnetic table for Z axis support
- Adjustable squeegee pressure : 1 - 20 Kg
- Adjustable squeegee speed : 5 - 520 mm/sec
- Supply of 10 magnebtic supports
- One set of SS suqeegee width 320 mm
- Conveyor direction: left to right
- Maximum guard dimensions : 584 x 584 mm (23 x 23 inches)
- Adjsutable stencil width
- Communication SMEMA 2
- 1 SMEMA cable
- PC operating under Windows 7
- Soft version : V6.5.4
- Screen with keyboard & track ball
- Power input: 230 Volts (1P+N+T)
- Pressurized air : 6 bars
- CE Stamp

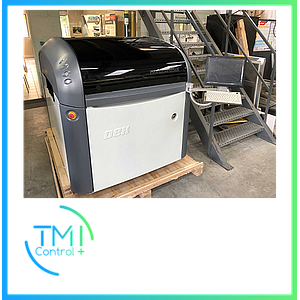

Printing machine DEK Horizon 03ix :

- Vintage 2015, S/N 853070 refurbished in 2021
- In-line automatic printing machine
- Dimensions : 1314 x 1601 x 1486 mm
- Weight : 760 Kg
- PCB max. dimensions : 508.5 x 508.5 mm
- PCB min. dimensions : 50 x 40.5 mm
- PCB thickness : 0.2 à 6 mm
- Blue under stencil cleaner, fully programmable wipe/dry/vaccum wipe
- Graphite digital camera Hawkeye 750, 2D option activated
- Magnetic pin toolings to support the PCB (x9)
- Squeegee pressure mechanism adjustable by soft : 0 - 20 Kg
- Print speed : 2 - 300 mm/sec.
- One set of inox squeegee
- Right to left or left to right
- Maximum guard size : 736 mm x 736 mm (29 x 29 pouces)
- SMEMA communication
- PC operating under Windows XP
- Options soft activated:
* 620 mm boards
* Advanced board inspection
* Advanced Stencil inspection
* Automatic Fiducial Setup
* Fast Print Speed
* GEM/SECS
* Networking
* QCCalc
* Selective Print/Pass
* Small Fiducials
* Tooling Deviation Monitoring
* Vision Plus
- Power supply : 230 Volts (1P+N+T)
- Pressurized air : 8 bars
- CE stamp

DEK Proflow :
Nouvelle et ancienne génération en 350mm et 400mm

Machine de sérigraphie manuelle Gémido S2020
