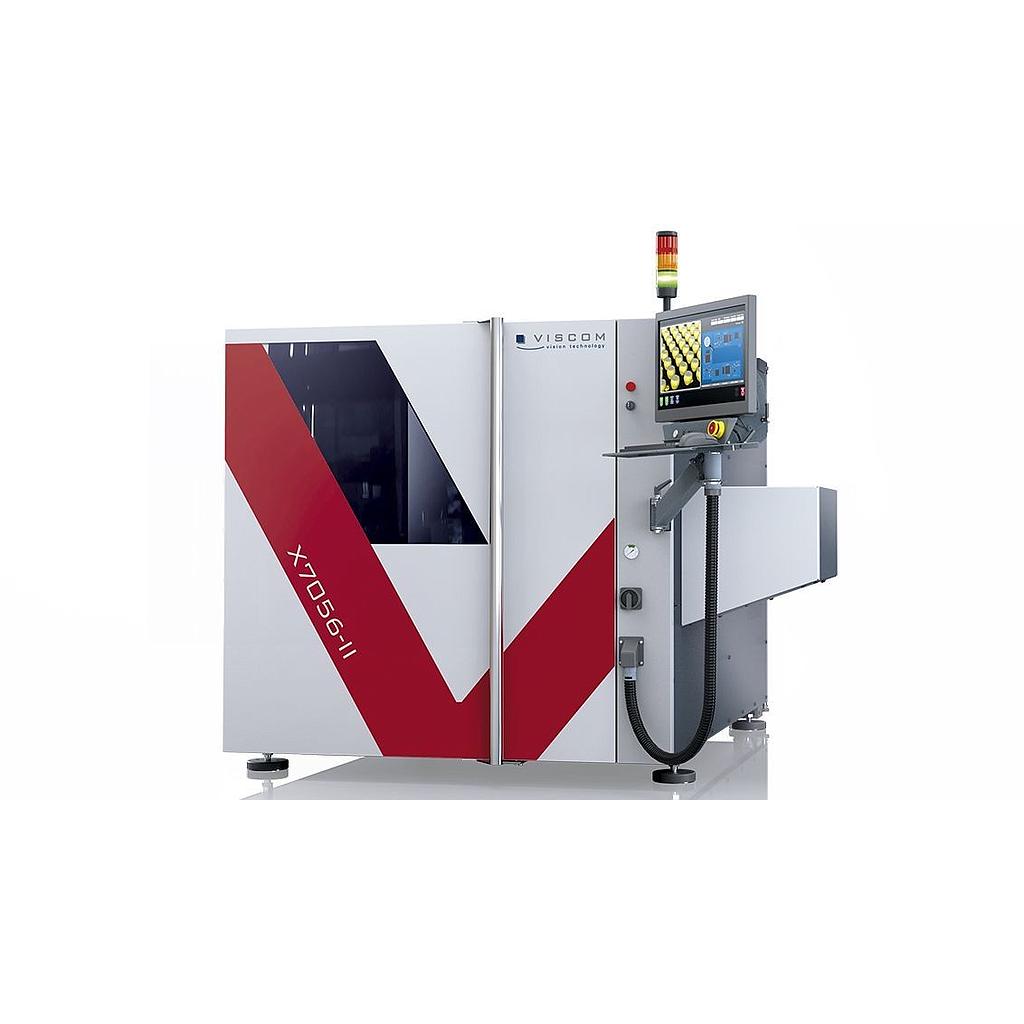

VISCOM - 3D X-Ray X7056-II

Inline X-Ray & Optical Inspection X7056-II

- Vintage : 2023
- Operating hours : 1500
- X-Ray:
* Seales X-ray tube
* High Voltage: 60 - 130 KV
* X-Ray current: 50 - 300 micro ampères
* Detector: Flat Panel Detector (FPD), 14-bits gryscale value depth
* Resolution: 6 - 30 micro metre / pixel (depending on configuration)
- 3D AOI:
* XM camera technology:
* FOV: 23 mm x 23 mm
* Resolution: 4.5 micro metre
* Camera type: up top 9 mega pixels
* 3D AOI
- PCB dimensions : width 350 mm x length 450 mm
- Automatic width adjustment during setup
- Pneumatic PCB clamping
- Conveyor elevation: 850 mm à 980 mm
- Clearance above PCB : 25 mm
- Clearance below PCB: 50 mm
- AOI inspection speed: up to 65 cm² / s
- X-Ray inspection speed: variable
- Windows operating system
- Soft : Viscom vVision/EasyPro
- 3 phases / 400 V / 50 Hz, 8 A
- Machine dimensions (L x W x H) : 1493 x 1631 x 2251 mm
- Weight : 2245 Kg

machine_contact

Refurbished

Thorough check-up of the equipment before complete refurbishment in our workshop, carried out by a highly skilled team, eventually tested before release & shippment

Installed in your factory

Material release, setting on the SMT line and start-up of the equipment carried out by a skilled & experienced engineer. We can also assist you during the start-up of production.

Training included

User training, programming & maintenance training ensured by a skilled engineer

Guarantee

All products are guaranteed to ensure the continuity of production, similar to what you would expect from a brand new equipment

Financing

We offer a quick turnkey solution which will safeguard your capex capability for other invests

Maintenance contract

Preventive annual maintenance to guarantee your production continuity and significantly decrease the maintenance cost of your SMT production line
