Nordson ASYMTEK Fluid dispensing platform
Inline fluid dispensing platofrm for potting type SD-960
Used equipment

- Vintage : 2018
- Dimensions (L x W x H) : 1000 x 1329 x 2182 mm
- Weight : 502 Kg

- Pump is not included
- High pressure valve SB300 (for thermal gel GEL 30 THERM-A-GAP de chez Parker)
- Laser height sensor for substrate height correction

- Chain type conveyor with stop pin
- Product sensor
- Motor driven width adjustment 35 to 475 mm
- Payload : 5 Kg
- Dispense area XY : 500 x 440 mm
- Pattern recognition system (camera) including lighting
- Door interlock control
- Light beacon with audible alarm
- 1 emergency stop buton front & rear
- Main circuit-breaker located rear machine
- Exhaust chimney with pressure security valve
- Stainless steel interior
- Dark light

- Labtop with Pentium processor
- User interface : keyboard & screen
- Operating system : Windows 7
- Software : Fluidmove
- Adjustable height computer arm

- Air supply : 6,2 bar
- Main power : 230 V / 10 A / 50-60 Hz
- Colour : RAL 9002
- SMEMA communication
- CE stamp

SL-940E conformal coating system

- Vintage: 2010
- Automated batch or in-line

- Fluid delivery method:
* SC-400 PreciseCoat jet
* SC-204HS high speed non circulating film coater

- Adjustable chain conveyor with mechanical stopper
* Motor driven with adjustment: 35 to 475 mm
* Clearance: 100 mm above and below PCB
* Maximum PCB weight: 5 Kg

- Dispense area: 500 x 475 mm

- Standard features:
* Application fluid and air pressure are software controlled
* Door interlock controls
- Downdraft ventilation with redundant safety vent switch
- Stainless steel interior
- Front access hatch with glass
- Computer arm adjustable in height and right/left oreintation
- Easy Coat software

- Dimensions: W 1000 mm x Depht 1329 mm x H 1982 mm
- Weight: 426 Kg
- Operating system: Windows 7
- User environment: Easy Coat software version 5.0.0.538
- Air supply: 6.2 bar
- Exhaust requirement: 343 m3 / hour
- Main Power: 220 V / 10 aA / 50/60 Hz

SOLTEC - Reflow oven 7038 type MR820N ROHS
Used equiment

- Vintage : 2008 - S/N : 08.70031
- Dimensions (L x l x H) : 4698 x 1600 x 1420 mm
- Weight : 2500 KG
- Mesh belt conveyor
- Maximum board width. : 500 mm
- Conveyor direction: left to right
- Process heating length : 2840 mm
. 8 top/bottom zones
- Maximum process temperature : 350°C
- Cooling length : 710 mm
. 2 top/bottom zones
- Flux trap system
. External water close loop system is required for cooling and fluw tarp
- Board counter
- Hight & low tremerature controlled by soft with alarm
- Limited heating power at start up
- Motorized opening of the vault
- Operating software: Windows XP
- Interface screen for operator
- 3 colors light columns with alrm buzzer
- Power inlet : 400 Volts (3P+N+T) / Puissance : 54 KVA
- Communication SMEMA 2
- Nitrogen : 6 bars
- Fume exhaust : 1 outlet Ø 165 mm - 250 m3 / heure
- Color : RAL 9002 et 7036
- CE stamp

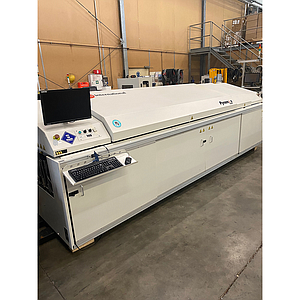

Reflow Oven BTU Pyramax 98N ROHS
Used equipment

- Vintage : 2004
- Length : 4.540 mm x Width : 1.524 mm x Height: 1.530 mm

- Pin chain conveyor
• Automatic width adjusted by soft
• height of board supporting pins: 5 mm
• Automatic greasing system
• Conveyor width : 51 - 457 mm

- Central support chain
• Adjustable width and retractable
• Automatic greeassing system

- Conveyor direction : Right to left (can be swpped to left to right

- Heating length : 2.500 mm
• 7 upper (top) zones / 7 lower (bottom) zones

- Max. heating temperature : 350°C
- Cooling zone length : 600 mm
- Flux management with trap system

- Water cooled flux trap and cooling system :
• Internal cooling by air (no external cooling system required)

- Operating under azote or air

- Nitrogen barrier system :
• Inlet : 450 mm / Outlet : 450 mm

- Closed Loop Convection Control
- Adjustable convection & cooling tpressure
- Board counter
- Programmable heating & cooling rates with alarm
- Limitation of absorbed power at start-up
- Motorized vault
- PC & software under Windows
- Operator screen for supervision with friendly interface
- 4 color signal tower with buzzer / 4 emergency button
- Color : RAL 9002
- Inlet air or azote : 6 bars
- Gas exhaust : 2 exhaust outlet Ø 130 mm
- Power inlet : 400 Volts (3P + N + T)

NUTEK - Buffer type NTM640SL
Refurbished equiment

- Vintage : 2007
- Modes : Fifo, Lifo & Pass through
- Dimensions : 660 x 1100 x 1700 mm
- Weight : 230 Kg
- Conveyor direction : Left to Right
- Conveyor elevation : 950 mm +/- 25 mm
- PCB width : 80 to 407 mm
- Manual adjustment of conveyor width
- PCB length : 80 to 457 mm
- Motorized conveyor with wheels
- 26 positions lift
- Controlled by OMRON PLS
- 3 colors flashing lights
- SMEMA 2 communication
- 1 SMEMA cable
- RAL : 7044
- Power supply : 230 Volts (1P+N+T)
- Air supply : 6 bars

Machine CAMALOT modèle 1818 :
- pose de point de colle en îlot (stand alone)
- accepte des cartes de 500 x 500 mm
- caméra + écran

JOT AUTOMATION - Line unloader 5 racks type J213-51
Refurbished used equipment

- Vintage : 2006
- Dimensions : L 2800 mm x W 900 mm x H 1800 mm
- Weight : 415 Kg
- Conveyor direction: left to right
- Maximum conveor witdh : 470 mm
- Max. rack dimensions : 535 x 530 x 570 mm
- Adjustable pitch controlled by soft
- Ajustable pusher (actuator)
- Cenveyor elevation : 950 mm +/- 50 mm
- PLC OMRON NT21-ST121-E
- Touch screen interface
- Communication SMEMA 2
- 1 SMEMA cable
- 1 safety buuton
- 3 colours headlight column
- Power : 230 Volts (1P+N+T)
- Pressurized air : 6 bars
- CE stamp
- Colour : RAL 9002 / 7040

CYBEROPTICS - SE 300 ULTRA
Inspection en ligne de cartes pré ou post refusion
Équipement d'occasion reconditionné

- Année : 2008

- Dimensions :
. Largeur : 980 mm
. Profondeur : 1250 mm
. Hauteur : 2000 mm
- Poids : 860 Kg

- Dimension carte :
. Maximum : 508 x 508 mm (20 x 20 in.)
. Minimum : 101 x 40 mm (4 x 1,5 in.)
- Épaisseur carte : 0,5 à 5 mm
- Poids carte maximum : 3 Kg

- Vitesse convoyeur : 150 à 450 mm/sec
- Hauteur convoyage : 950 mm +/- 50 mm
- Convoyeur pass-thru avec réglage automatique de largeur et système de bridage

- Aire inspection maximum : 508 x 503 mm

- Équipée laser
- Vision 3D
. Mesure de hauteur, surface, volume
. Enregistrement mesures et détection des courts-circuits
. Composants jusqu’au 0201

- PC processeur Pentium 4 sous Windows XP
- Revue des défauts hors-ligne & programmation aisée
- Alimentation électrique : 230 Volts (1P + N + T)
- Alimentation air : 6 bars
- Conforme aux normes CE

3D Solder Paste Inspection CYBEROPTICS SE 300 ULTRA

- Inline inspection system after printer
- Vintage 2008
- Equipped with laser class II
- 3D vision with true volume and area measurements to detect short cuts
- Components up to 0201
- Panel size capacity : 508 x 508 mm max (20 inches x 20 inches)
- Board thickness : 0,5t to 5 mm
- Pass thru conveyor with automatic width adjustment & clamping system
- PC operating under Windows XP
- Offline defect review capability & easy programming
- Power supply : 230 Volts (1P + N + T)
- Compressed air : 6 bars

3D Solder Paste Inspection CYBEROPTICS SE 300 ULTRA

- Inline inspection system after printer
- Vintage 2007
- Equipped with laser class II
- 3D vision with true volume and area measurements to detect short cuts
- Components up to 0201
- Panel size capacity : 508 x 508 mm max (20 inches x 20 inches)
- Board thickness : 0,5t to 5 mm
- Pass thru conveyor with automatic width adjustment & clamping system
- PC operating under Windows XP
- Offline defect review capability & easy programming
- Power supply : 230 Volts (1P + N + T)
- Compressed air : 6 bars

DEK Proflow :
Nouvelle et ancienne génération en 350mm et 400mm

Printing machine DEK Horizon 03ix :

- Vintage 2015, S/N 309749, refurbished in 2020
- In-line automatic printing machine
- Dimensions : 1314 x 1601 x 1486 mm
- Weight : 760 Kg
- PCB max. dimensions : 508.5 x 508.5 mm
- PCB min. dimensions : 50 x 40.5 mm
- PCB thickness : 0.2 à 6 mm
- Blue under stencil cleaner, fully programmable wipe/dry/vaccum wipe
- Graphite digital camera Hawkeye 750, 2D option activated
- Magnetic pin toolings to support the PCB (x9)
- Squeegee pressure mechanism adjustable by soft : 0 - 20 Kg
- Print speed : 2 - 300 mm/sec.
- One set of inox squeegee
- Right to left or left to right
- Maximum guard size : 736 mm x 736 mm (29 x 29 pouces)
- SMEMA communication
- PC operating under Windows XP
- Options soft activated:
* 620 mm boards
* Advanced board inspection
* Advanced Stencil inspection
* Automatic Fiducial Setup
* Fast Print Speed
* GEM/SECS
* Networking
* ProDEK
* Production tracability
* QCCalc
* Selective Print/Pass
* Singulation
* Small Fiducials
* Tooling Deviation Monitoring
- Power supply : 230 Volts (1P+N+T)
- Pressurized air : 8 bars
- CE stamp

Dépileur de circuit nus NUTEK NTM220DSL-FW occasion

- Année : 2009
- Modèle : NTM220DSL-FW
- Dépileur de cartes gravitaire
- Dimensions :
. Longueur : 500 mm
. Largeur : 904 mm
. Hauteur : 1330 mm
- Poids : 130 Kg
- Hauteur convoyage : 950 mm +/- 25 mm
- Sens de convoyage : gauche vers droite
- Largeur de carte utile : 50 - 407 mm
- Longueur de carte utile : 80 - 457 mm
- Épaisseur de carte utile : 0,4 - 2,6 mm
- 1 segment vitesse fixe : 12 m / min
. Courroies plates 3 mm ESD
- Ajustement largeur automatique via équipement amont
- Option pass-thru
. Hauteur dessus / dessous composants mode pass-thru : 30 mm
- Temps de cycle : +/- 6 sec
- Hauteur de stockage cartes : 250 mm
- Alimentation électrique : 230 Volts (1P+N+T)
- Alimentation air : 6 bars
- 1 sectionneur
- 1 arrêt d'urgence
- Colonne lumineuse 3 couleurs
- Couleur : RAL 9002



- 1 sectionneur
- 1 bouton voyant marche
- 1 bouton voyant arrêt
- 1 bouton stop/envoi pour inspection
- 1 arrêt urgence
- Gestion par automate Panasonic
- Alimentation électrique : 230 Volts (1P+N+T)
- Communication SMEMA 2
- 1 cordon SMEMA
- Couleur : RAL 9002

Groupe de froid EUROKLIMAT pour four de refusion (ou autre) :
- série IPE
- model 20
- gaz R407C
- dimensions : 650mm x 1050mm x 1400mm

EUROPLACER Mass Trolley blanc first generation equiped
- 33 positions 8 mm
- Equiped with feeders elements first generation

Convoyeur EUROPLACER E111234C de 1m
